AI Producer & Local Computing (Computer and Camera)

Features

Fully automated camera production system powered by state of the art AI technology.

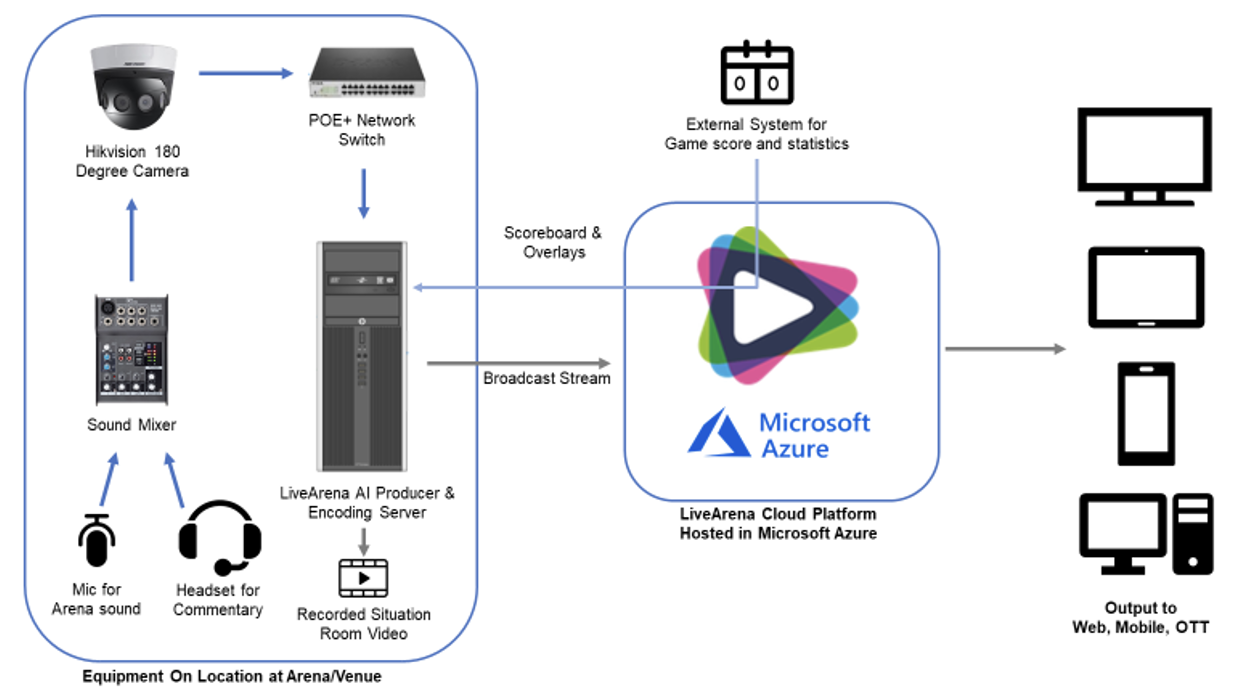

The Virtual Director is installed on the LiveArena AI Producer computer. It takes the video feed, audio and graphical overlays to produce a broadcast.

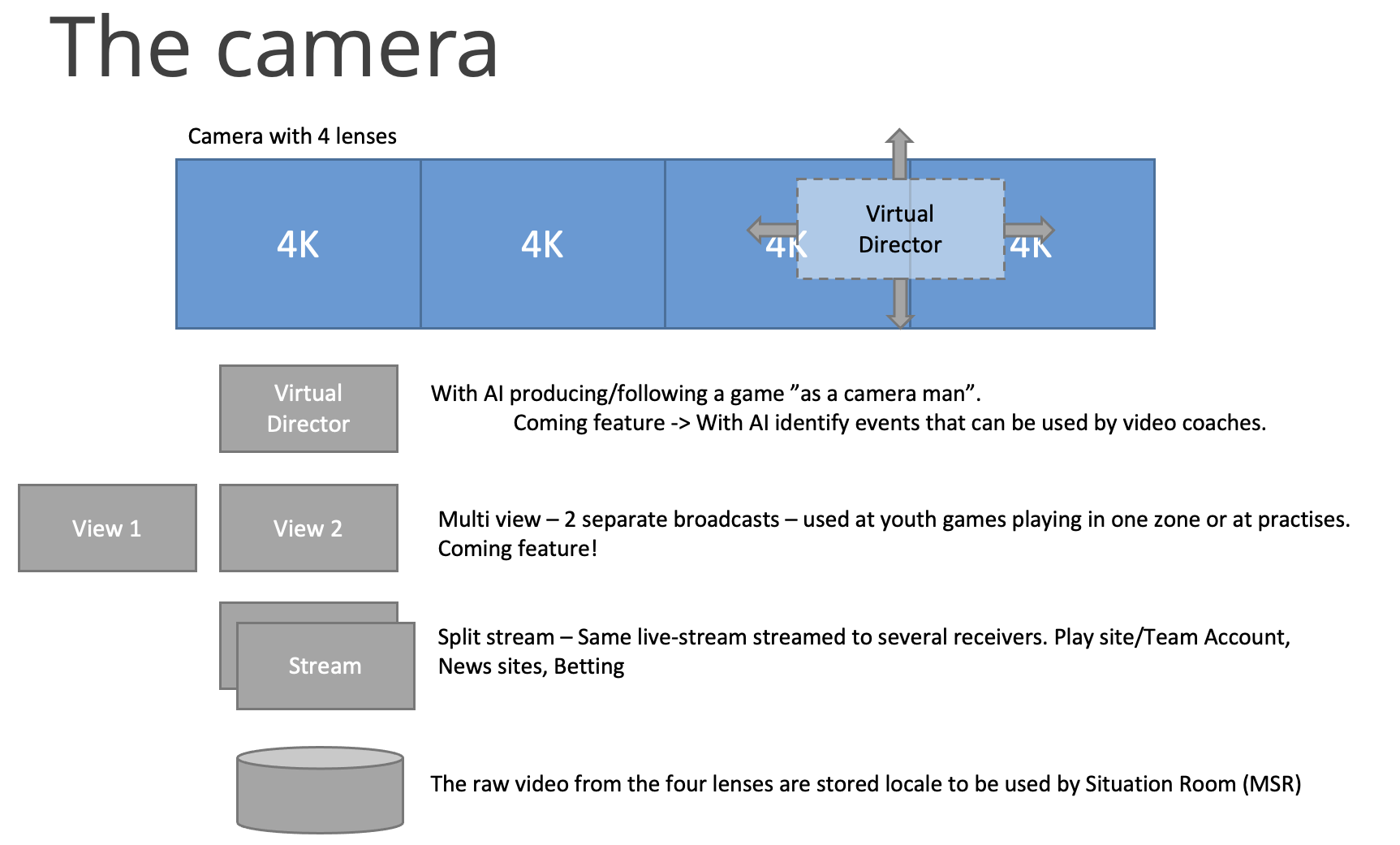

The camera has 4 lenses recording in 4K-resolution. The AI Virtual Producer is following the game play picking what to show in the video stream. The stream can be splitted, or fixed and used in games and practices (upcoming release)

Technical

• AI Producer Computer

  • Intel Core i9-10940X

  • ASUS PRIME X299-A II – Socker-2066

  • HyperX Fury DDR4 3200MHz 16GB (2 x 8GB) DDR4 3200MHz

  • PNY NVIDIA Quadro P2200 5GB GDDR5X

  • Samsung 970 EVO Plus - 500GB

  • Western Digital Black 4TB

  • TP-Link TG-3468 Gigabit PCI-E

• Camera

  • HikVision DS-2CD6984G0-IH(S)(AC)

• Audio

  • Behringer Xenyx 502

  • Behringer C-2

Camera manuals:

DS-2CD6984G0-IHSACNFC2.8mm_Datasheet_V5.5.70_20200430.pdf User_Manual_of_DS-2CD6984G0-IHSACNFC.pdf

• Camera installation requirements

  • Minimum lightning: Color: 0.012 Lux @ (F1.4, AGC ON), B&W: 0.0012 Lux @ (F1.4, AGC ON), 0 Lux with IR
